MOUNTAIN MACHINE & MOTORCYCLE

Specializing in custom CNC machining.& Harley Davidson service and parts.

Evergreen, Colorado

303-862-8803
CLICK FOR MILITARY DERBY COVERS
Ultima 4.00 Bore 107 Engine               Ultima 4.00 Bore 113 Engine

Bore: 4.000”
Stroke: 4.25”
Piston: Forged
Compression: 10:1
Rated Power: 115RW HP
120 LB FT Torque
Camshaft: 248  Duration .625” lift
Valve Spring: Ultima
Chrome Nose Cone / Rocker Boxes
Billet Oil Pump
Chrome Tappet Blocks
Ignition included on assembled engines.


Ultima 3.875 Bore 100 Engine
Bore: 3.875”
Stroke: 4.25”
Piston: Forged
Compression: 9.6:1
Rated Power: 110RW HP
110 LB FT Torque
Camshaft: 248  Duration .625” lift
Valve Spring: Ultima
Chrome Nose Cone / Rocker Boxes
Billet Oil Pump
Chrome Tappet Blocks
Ignition included on assembled engines


El Bruto® Series
Ultima 4.00 Bore 107 and 113 CI  Engines & Long Blocks
Ultima® is now offering the new “El Bruto” Series Engines which are designed to provide our customers with a U.S.A. built High Performance engine that is priced to be the best value of any engines now on the market.

All of the castings in these engines are poured in U.S. foundries and are based on all-new CAD designs cast from C355 aluminum, a common U.S. military alloy known for its stability over multiple heat cycles. The engine components are machined on state of the art CNC equipment for guaranteed dimensional accuracy and repeatability. All of our engines are dynamically balanced using proprietary methods to provide the smoothest running engines on the market and now with our new high flow cylinder heads these engines now can boast the most powerful engines on the market as well!! We think that you will agree these engines are the best value anywhere.  12 /12 warranty. d.o.p.
Case
Made In U.S.A. Cast-in steel inserts guaranteed not to move. Large bore breather for increased crank case vacuum and less blow by. 1/2” Alignment dowels for true line bore. Counterbored stainless allen head case bolts. Close machining tolerances. Made from prime C355-T6 aluminum that is superior in strength to A356. Styling and cosmetic machining for a custom look.
Crankshaft
Forged 4140 Steel. Dynamic balanced for the smoothest running engines in the industry. Light weight 7.44” high-performance H-beam rods w/.792” fins.  Jims Machining shafts and pins.
Cylinder
C355 Casting. Cast-in liners will not move.  All fins are machined for an excellent cosmetic appearance.Cylinder Head
C355-T6 Casting. All fins are machined for excellent cosmetic appearance. Twin Cam Styling. 30 % More fin area than Evolution® style heads for cooler running. 2.100 Stainless Int. Valves. 1.700 Stainless Ex. Valves. Manganese Bronze guides. High Silicon Wire Valve Spring with Chromoly Retainer.

   100 CI Complete Engine
298-250  Complete 100CI Engine, Natural.
298-251  Complete 100CI Engine, Black.
298-252  Complete 100CI Engine, Polished.

     107 CI Complete Engine
298-230  Complete 107CI Engine, Natural.
298-231  Complete 107CI Engine, Black.
298-232  Complete 107CI Engine, Polished.


    113 CI Complete Engine
298-253  Complete 113CI Engine, Natural.
298-254  Complete 113CI Engine, Black.
298-255  Complete 113CI Engine, Polished.



Bore: 4.000”
Stroke: 4.5”
Piston: Forged
Compression: 10.2:1
Rated Power: 120RW HP
120 LB FT Torque
Camshaft: .640” Lift
Valve Spring: Ultima
Chrome Nose Cone / Rocker Boxes
Billet Oil Pump
Chrome Tappet Blocks
Ignition included on assembled engines.
This 124 cubic inch engine is designed with touring, and or bagger riders in mind.


#298-228
Engine Polished

#298-228
Engine Natural Finish

#298-228
Engine Black

Starting with the proven 120 engine as the basis, the 124 cid was accomplished by
increasing the stroke from 4.25” to 4.375”. This insures the rider of at least 100 ft. lbs. of torque
above 2000 RPM for passing situations. The camshaft was changed to lower the peak torque
RPM and to spread out the torque curve. At the same time the camshaft ramps were designed
to provide quiet, easy on the valve train longevity.

The compression ratio was dropped slightly to allow for the occasional bad tank of fuel without
causing major engine damage. This slight drop in compression also has the effect of smoothing
out the firing impulses for an even smoother ride. Couple these improvements to pistons made
from time proven 2618 alloy and you have a very quiet, powerful, and long lasting engine for
your riding pleasure.

This combination has been proven on the dyno with torque exceeding 135 ft. lbs. and horse-
power exceeding 140. This data was gathered on a Superflow Dyno, which is recognized as 10%
low when compared to Dyna Jet numbers. Add 10% and you get an astounding 148 ft. lbs. and
154 HP! Not bad for a “bagger” engine!

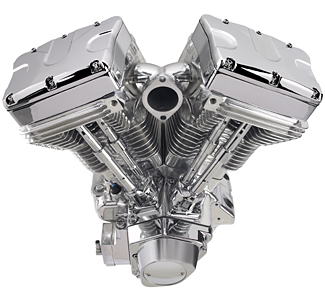

Ultima Long Rod 140 Engine
140 CI
Bore: 4.400
Stroke: 4.625
Press Pin Crank w/ 8” Rods
Piston: Forged Flat Top w/ 927 Pins
Compression: 10.8:1
Cam Shaft: .640” Lift
CNC Ported Oval Port H.O. Heads
2.300” Int  1.800” Ex Valves
Chrome Billet  Reed Valve Rocker Boxes
Billet Oil Pump
Ignition is installed on assemble engines
Includes 48mm Mikuni Carburetor
Rated Power 165 HP—170 Lb Ft Torque

The 4.400” bore
140" El Brutos®
are engines that defy
description to those
who have not yet
experienced this level of
Horsepower & Torque.
This is the correct answer
for the customer who
demands the highest
performance available.


El Bruto® Competition Series
Ultima Long Rod 140 CI  Engines
Ultima has put together our first High Output Engine packages for the most demanding performance enthusiast. All Engines feature our heavy duty C355 Castings and Dynamic Balanced Press Pin Crank Shafts. This is a difficult engine to describe the performance level to anyone who hasn’t had it and this is the correct answer for the customer who demands the highest performance availible. These Engines are available in both Assemble Complete and Unassembled Long blocks.
Things you must know
You must have a frame that can accept an engine 5/8” taller than a stock Evo.
You must have heavy-duty drive train components.
Limited warranty.
Rated Power: is based on using a very large bore Carb such as the 48mm Mikuni or S&S D series and Hooker Step Tuned  Short Staggered Dual Ex. Other Combinations will change the power level attainable
Case
Made In U.S.A. Cast-in steel inserts guaranteed not to move. Large bore breather for increased crank case vacuum and less blow by. 1/2” Alignment dowels for true line bore. Counterbored stainless allen head case bolts. Close machining tolerances. Made from prime C355-T6 aluminum that is superior in strength to A356. Styling and cosmetic machining for a custom look.
Crankshaft
Our New state of the art designed crankshaft incorporates a massive 1.670 diameter pin that is pressed into the one piece, heat treated, 4140 steel flywheel half making these crankshafts some of the strongest available on the market today. These crankshafts feature all new 8.0” long H-Beam rods with .927 diameter wrist pins to handle all the power you can throw at them. These are also balanced using our exclusive methods making these some of the smoothest engines in the industry.
Cylinder
C355-T6 Casting. Cast in liners will not move. . All fins are machined for an excellent cosmetic appearance.
Cylinder Head
C355-T6 Casting. All fins are machined for excellent cosmetic appearance. Twin Cam Styling means 30% more fin than most Evolution® style heads for cooler running. Compression release valves. 2.300 stainless intake valves, 1.800 stainless exhaust valves. CNC ported.  Manganese Bronze guides. High silicon wire valve spring with chromoly retainer.

140 CI Complete Engine
#298-243  Complete 140 CI Engine, Natural
#298-244  Complete 140 CI Engine, Black
#298-245  Complete 140 CI Engine, Polished

140 CI Long Block Unassembled
#298-240  140 CI Long Block, Natural
#298-241  140 CI Long Block, Black
#298-242  140 CI Long Block, Polished


140 CI Complete Engine
#298-243  Complete 140 CI Engine, Natural


#298-244  Complete 140 CI Engine, Black


#298-245  Complete 140 CI Engine, Polished

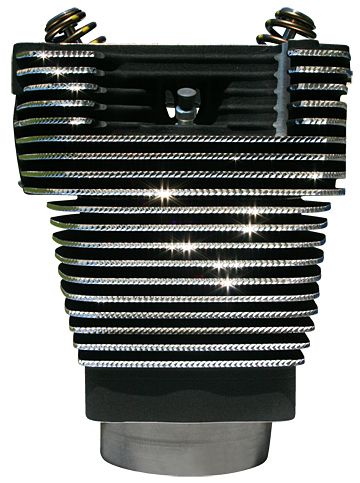

ULTIMA BLACK DIAMOND CUT ENGINES
> 296-251      100 BLACK DIAMOND CUT
> 296-244      140 BLACK DIAMOND CUT
> 296-273      127 BLACK DIAMOND CUT

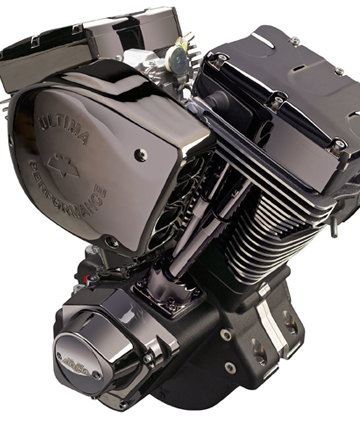

Black Nickel Plating
on Ultima® El Bruto® Engines offer a look unlike any other
production motor on the market. Rocker Boxes, Air Cleaner Cover,
Push Rod Covers, Tappet Blocks, and
Cam Cover all feature
the Black Gem® Plating.

#298-228
113 C.I. Black Gem®
Competition Series Engine

#298-229
127 C.I. Black Gem®
Competition Series Engine


Rated Output 113 C.I.
120 HP with 120 LB FT Torque. Not EPA Compliant. 113 C.I. c-series
engines carry a 12 month, 12,000 mile limited warranty from original date of purchase.

Rated Output 127 C.I.
140 HP with 140 LB FT Torque. Not EPA Compliant. 127 C.I. c-series
engines carry a 6 month, 6,000 mile limited warranty from original date of purchase

For those who are looking
for a quality Shovelhead
engine at a realistic price,
the wait is over!
Ultima® is proud to
present their newest
addition to the Ultima
engine lineup. Their engineers have developed
what we believe to be a
superior motor that will
please even the most
die-hard Shovelhead
enthusiast. This Ultima
shovelhead motor
offers modern technology
in a nostalgic exterior.
96 C.I. shovelhead engine carries a 6 month, 6,000 mile limited warranty
from original date of purchase.
#298-210
96 C.I.Engine
Ultima engine pricing and availability subject to change
Ultima engines

High Performance
Low Price
Made in the USA!

We will do our best to meet or beat any advertised price out there!
